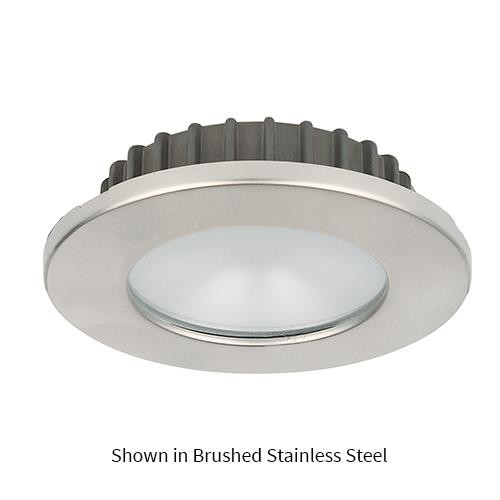

Tide Power LED, 10-40VDC
Featuring 2-wire power & dimming, Tide easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation. Carefully designed optics result in fully blended illumination free of annoying artifacts or distracting hot spots. A robust thermal management system results in maximum life with minimal lumens depreciation over its expected working life (50,000+ hrs). Tide offers single or bi-color dimming when paired with Imtra's single or dual channel PWM dimmer module. Tide features a small diameter round bezel and low profile housing for mounting in shallow depth overheads. Tide mounts securely to overhead using just three #4 flathead screws. It is a good choice for general lighting on smaller boats or as undercabinet lighting for any size vessel. Other applications include hard tops, arches, walkway overhangs, and shower stalls. Made in the USA and covered by a 5-year warranty!
- Ideal for fitting in to ceilings with recess depth limitations
- Twist-on round stainless steel bezel
- Convenient 2-wire power & dimming
- Bi-color models dim with single momentary switch
- Integrated current controlled drive circuitry
| Trim Ring (Bezel) Finish/Material | White, Stainless Steel, Brushed Stainless Steel or Gold |
| Housing Finish/Material | Black Electrophoretic Aluminum |
| Lens Material | Frosted glass |
| Trim Ring (Bezel) Dimensions | 2.86" (73mm) dia |
| Cut-out Dimensions | 2.13" (54mm) |
| Recessed Depth | 0.55" (14mm) |
| Dimensions | See dimensional drawing |
| Integrated Switch | No |
| Input Voltage | 10-40VDC |
| Halogen Equivalency | 25W |
| Power Consumption | 3.2W |
| Driver | Integrated |
| Output Color | Warm White, Cool White or Neutral White |
| Luminous Flux | 122 lms |
| Correlated Color Temperature (CCT) | 2800K (White LED) |
| Color Rendering Index (CRI) | 85 |
| Lifetime Hours | 50,000 hrs |
| Dimmer Compatibility | ILIM80130, ILIM80140 |
| Dimmer Control Interface | Momentary Push-Button |
| Dimming Range | 5-100% |
| Install Location | Interior/Exterior |
| Ingress Protection | IP65 (applies only to frontal water exposure, i.e. Exposed surface) |
| Class | III |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Certifications & Compliance | CE-EMC, ROHS |
| Manufacturer | Imtra |
| Warranty | 5 Years / 1 Year Finish |
Available SKUs ILIM61000, ILIM61001, ILIM61002, ILIM61003, ILIM61100, ILIM61101, ILIM61103, ILIM61102, ILIM, 61200, ILIM61201, ILIM61202, ILIM61203
