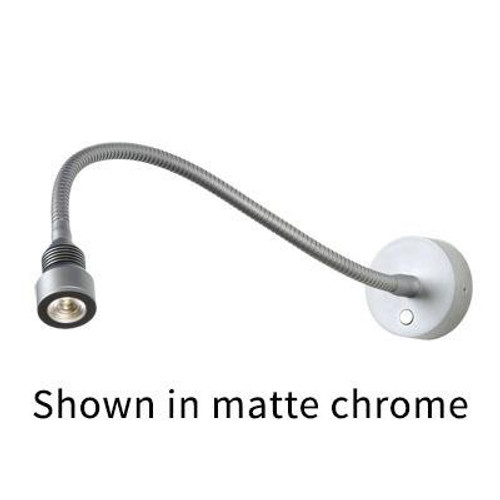

Rugen Table Mount LED w/Switch & Dimmer, 10-30VDC, 300mm
10-30VDC, IP40, 3W, 300mm
Rugen is an elegant and modern flex-arm table mount reading light which is rigid enough to also be installed against a bulkhead. Its warm white LED provides bright illumination for reading. Press twice on the built in switch and the color switches to a Red LED night light. Press and hold the switch to dim each color to desired intensity. The white LED is equivalent to a 20W halogen yet consumes just 3W of power.
- Contemporary, yet elegant in design
- Flexible brass coil neck with rotatable head
- Switch between warm white or red night light
- Infinitely variable dimming via integrated "soft" switch
| Housing Finish/Material | Shiny chrome/brass, Matte Chrome or Gold |
| Shade/Globe Finish Material | Shiny chrome/brass, Matte Chrome or Gold |
| Lens Material | Acrylic |
| Base Dimensions | 2.17" (55mm) dia |
| Dimensions | 0.79" (20mm) ht x 2.17" (55mm) dia |
| Extension Length | 16.70" from mounting surface |
| Integrated Switch | Yes (micropush-button) |
| Input Voltage | 10-30VDC |
| Halogen Equivalency | 20W |
| Power Consumption | 3W |
| Driver | DC-DC Integrated |
| Output Color | Warm White/Red (switchable) |
| Luminous Flux | 190 lms |
| Correlated Color Temperature (CCT) | 3000K |
| Lifetime Hours | 50,000 hr (L70) |
| Dimmer Control Interface | Integrated "soft" touch push-button |
| Dimming Range | 100% |
| Mounting Method | Screws |
| Install Location | Table top (or bulkhead) |
| Ingress Protection | IP40 |
| Class | III |
| Electrical Protections | Transient, Reverse Polarity |
| Certifications and Compliance | CE, ROHS |
| Manufacturer | Prebit |
| Warranty | 3 Years / 1 Year Finish |
Available SKUs ILPB24800005, ILPB24800007, ILPB24800009
Click here for dimensional drawing
3 year manufacturer's warranty/1 year finish
