Montauk LED 24V

Imtra Lights

$49.00
SKU:
83060
Availability:
Usually ships within 5 business days
Weight:
0.57 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

This elegantly appointed low profile LED courtesy light features soft rounded edges that blend in perfectly with its environment. It features the latest generation SMD LEDs from Osram and the circuit board is designed to optimize light output and extend the overall operating life of the LED diodes. The result is high performance and consistent light output over a wide voltage range. The diffused lens refracts the light, resulting in elimination of the typical annoying "dots" often seen from other manufacturers.

Features & Benefits:

  • Solid State Circuitry:  Vibration/Shock-proof
  • Low profile design
  • Extremely low current draw
  • O-ring gasket allows for exterior use in stainless steel
  • Corrosion-resistant clear coat (internal board)
  • Consistent lumen maintenance across voltage range
  • Low maintenance
  • Dual color (red/warm white) option available in multi voltage

Selectable Models ILSH70119 ILSH70153 ILSH70131 ILSH70143

Product Details

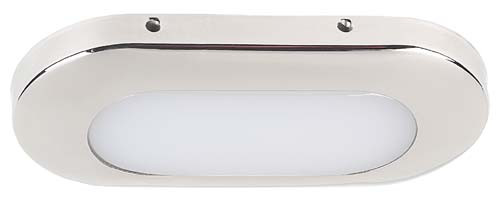

Description: Montauk LED Recessed Courtesy Light
Finish: Stainless Steel
Housing: Polycarbonate
Trim Ring Material: Stainless Steel
Lens: Frosted polycarbonate
Dimensions: 3.03 x 1.46 x 0.51" (77 x 37 x 13mm)
Recessed Depth: 0.83" (21mm)
Cutout Diameter: 2.05" (52mm)
Switch: No
LED Engine: 4 x SMD LEDs
Voltage: 24VDC (21-30VDC)
Current: 40mA
Power Consumption: 0.5 Watts
Electric Protection: Polarity Reversal & Overvoltage
Average Life: 50,000 hrs (25% Criterion)
Temperature Rating: -77° F up to 158° F (operational)
IP Rating: IP65
Classifications: F, Class III
Wire Size: See Chart
1 Year manufacturer's warranty
